    C9300-24U-A Gigabit Ethernet Switch 9300 UPOE

    Ask Lasest Price
    Brand Name : N/A
    Model Number : C9300-24U-A Gigabit Ethernet Switch
    Certification : N/A
    Price : $ 4600---4700 Negotiable
    Payment Terms : Western Union T/T Bank Wire
    Supply Ability : 10 pcs in 5 days
    Delivery Time : 2---5 Working days
    • Product Details
    • Company Profile

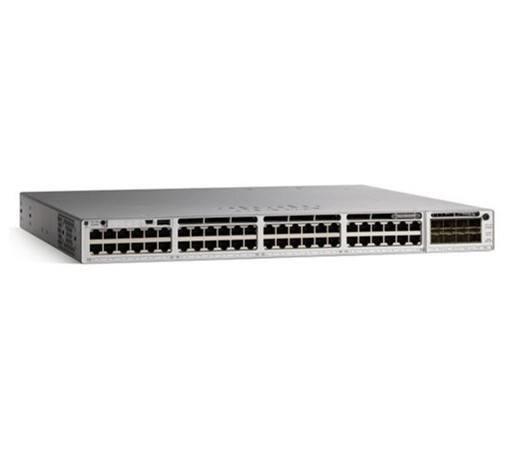

    C9300-24U-A Gigabit Ethernet Switch 9300 UPOE

    C9300-24U-A Gigabit Ethernet Switch 9300 24-port UPOE Network Advantage Product Overview
    The Cisc o® Catalys t® 9300 Series Switches are Cisc o's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24T-E is 24-port data only, Network Essentials Switch of 9300 series. Catalys t 9300 Series are the next generation of the industry's most widely deployed switching platform. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalys t 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. C9300-24U-A Gigabit Ethernet Switch.


    Specification

    C9300-24U-A Specification
    Part Number
    C9300-24U-A Gigabit Ethernet Switch
    Product Description
    C9300-24U-A Gigabit Ethernet Switch 9300 24-port UPOE Network Advantage
    Total 10/100/1000 or Multigigabit copper ports
    24 Cisco UPOE
    Default AC power supply
    1100W AC
    Available PoE power
    830W
    Cisco StackWise-480
    Yes
    Cisco StackPower
    Yes
    Default power supply
    PWR-C1-1100WAC
    Switching capacity
    C9300-24U-A Gigabit Ethernet Switch
    Stacking bandwidth
    480 Gbps
    Total number of MAC addresses
    32,000
    Total number of IPv4 routes (ARP plus learned routes)
    32,000 (24,000 direct routes and 8000 indirect routes)
    IPv4 routing entries
    32,000
    IPv6 routing entries
    16,000
    Multicast routing scale
    8000
    QoS scale entries
    5120
    ACL scale entries
    5120
    Packet buffer per SKU
    16 MB buffer for 24- or 48-port Gigabit Ethernet models
    FNF entries
    64,000 flow on 24- and 48-port Gigabit Ethernet models
    DRAM
    8 GB
    Flash
    16 GB
    VLAN IDs
    4000
    Total Switched Virtual Interfaces (SVIs)
    2000
    Jumbo frames
    9198 bytes
    Total routed ports per 9300 Series stack
    208
    Wireless bandwidth per switch
    Up to 48 Gbps on 24-port Gigabit Ethernet model
    Forwarding rate
    154.76 Mpps
    Dimensions (H x W x D)
    1.73 x 17.5 x 17.5 Inches
    Weight
    16.33 Pounds
    Mean time between failures (hours)
    299,000
    Safety certifications
    ● UL 60950-1
    ● CAN/CSA-C222.2 No. 60950-1
    ● EN 60950-1
    C9300-24U-A Gigabit Ethernet Switch
    Electromagnetic emissions certifications
    ● 47 CFR Part 15
    ● CISPR22 Class A
    ● EN 300 386 V1.6.1
    C9300-24U-A Gigabit Ethernet Switch
    Environmental
    Reduction of Hazardous Substances (ROHS) 5
