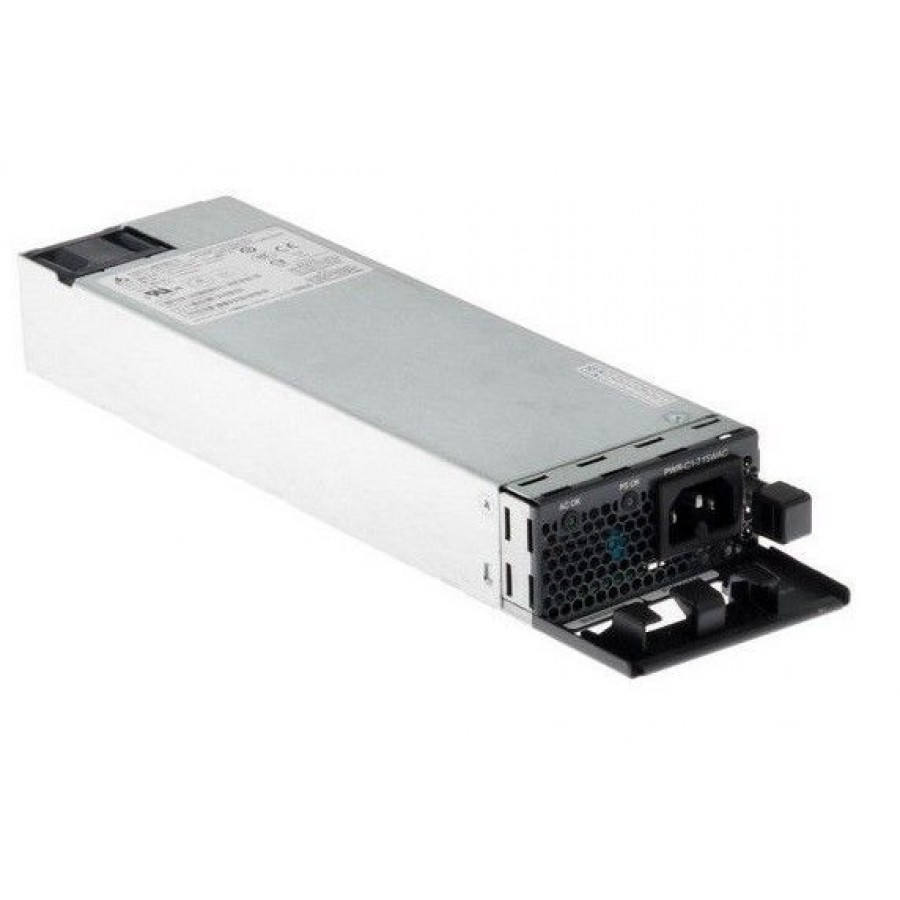

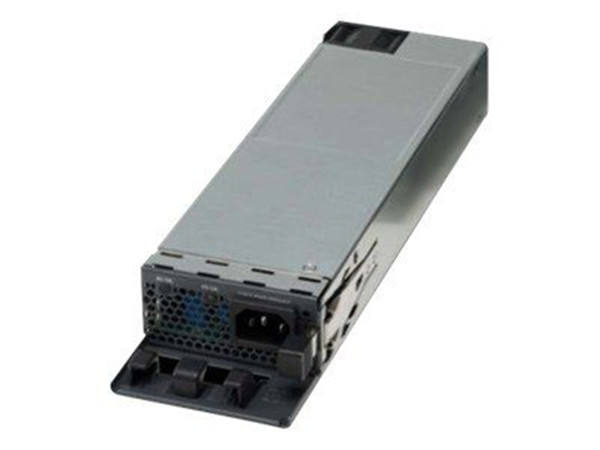

    PWR-C1-715WAC-P 715W Server Power Supply Unit AC 80+ Platinum Config

    Ask Lasest Price
    Brand Name : N/A
    Model Number : PWR-C1-715WAC-P Network Server Power Supplies 715W AC 80+ platinum Config
    Certification : N/A
    Price : $ 270 $ Negotiable
    Payment Terms : Western Union T/T Bank Wire
    Supply Ability : 100 PCS 7 DAYS
    Delivery Time : 2---3 Working days
    • Product Details
    • Company Profile

    PWR-C1-715WAC-P 715W Server Power Supply Unit AC 80+ Platinum Config

    PWR-C1-715WAC-P Network Server Power Supplies 715W AC 80+ platinum Config


    Products Overview

    PWR-C1-715WAC-P Network Server Power Supplies 715W AC 80+ platinum Config Provide power to your Catalyst switch efficiently with the Power Supply. This power adapter is designed as a plug-in module that fits perfectly in compatible C3850 Series switches. It delivers a 715-watt redundant power supply at AC 100-240 V for user convenience and high-performance.Hot-plug switching power supply delivers 715 W power at 2465 BTU/hrUL 60950-1,CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking compliance for user safetyTech paramsNone. PWR-C1-715WAC-P Network Server Power Supplies 715W AC 80+ platinum Config


    Specification

    PWR-C1-715WAC= Specification
    Power supply rated maximum
    715W PWR-C1-715WAC-P Network Server Power Supplies 715W AC 80+ platinum Config
    Total output BTU (Note: 1000 BTU/hr = 293W)
    2465 BTU/hr, 715W PWR-C1-715WAC-P Network Server Power Supplies 715W AC 80+ platinum Config
    Input-voltage range and frequency
    100-240VAC,50-60 Hz
    Input current
    10-5A PWR-C1-715WAC-P Network Server Power Supplies 715W AC 80+ platinum Config
    Output ratings
    -56V at 12.8A
    Output holdup time
    16.7 ms minimum at 100VAC
    Power-supply input receptacles
    IEC 320-C16(IEC60320-C16)
    Power cord rating
    13A
    Physical specifications
    (H x W x D): 1.58 X 3.25 X 12.20 in
    Weight: 2.8 lb(1.3 kg)
    Operating temperature
    23 to 113°F (-5 to 45°C)
    Storage temperature
    -40 to 158°F (-40 to 70°C)
    Relative humidity operating and nonoperating noncondensing
    5 to 90% noncondensing
    Altitude
    10,000 ft. (3000 meters), up to 45°C
    MTBF
    Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
    EMI and EMC compliance
    FCC Part 15 (CFR 47) Class A
    ICES-003 Class A
    EN 55022 Class A
    CISPR 22 Class A
    AS/NZS 3548 Class A
    BSMI Class A (AC input models only)
    VCCI Class A
    EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3
    EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
    Safety compliance
    UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
    LED indicators
    “AC OK”: Input power to the power supply is OK
    “PS OK”: Output power from the power supply is OK
