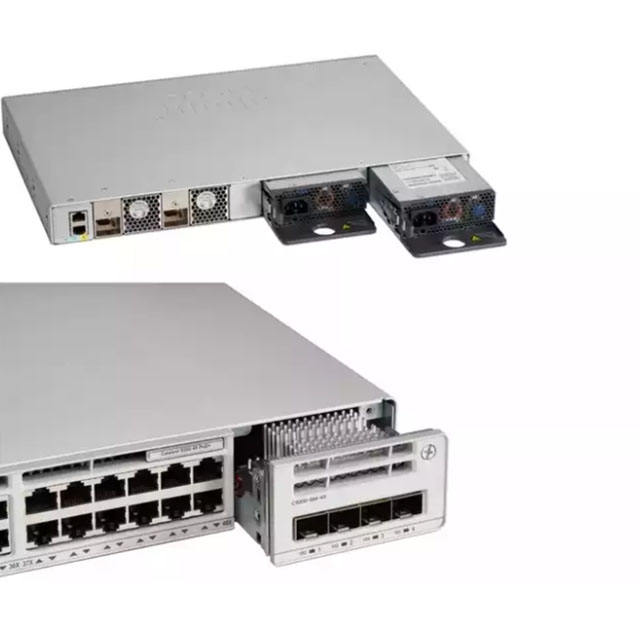

    C9200L-48T-4X-E Network Processing Engine Ethernet Switch 9200L 48 Port Data 4 X 10G

    Ask Lasest Price
    Brand Name : N/A
    Model Number : C9200L-48T-4X-E Network Processing Engine Ethernet Switch
    Certification : N/A
    Price : $3100---3300 Negotiable
    Payment Terms : Western Union T/T Bank Wire
    Supply Ability : 33 pcs in 3 days
    Delivery Time : 2---3 Working days
    • Product Details
    • Company Profile

    C9200L-48T-4X-E Network Processing Engine Ethernet Switch 9200L 48 Port Data 4 X 10G

    C9200L-48T-4X-E Network Processing Engine Ethernet Switch


    Products Overview

    C9200L-48T-4X-E Network Processing Engine Ethernet Switch Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX. Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE. Flexible downlink options with data, PoE+ or mGig Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX ariants, policy-based segmentation, and trustworthy solutions for the whole C9200 family Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access C9200L-48T-4X-E Network Processing Engine Ethernet Switch


    Specification

    C9200L-48T-4X-E Network Processing Engine Ethernet Switch Specification
    Downlinks total 10/100/1000 or PoE+ copper ports
    48 ports data
    Uplink configuration
    4x 10G fixed uplinks
    Default primary AC power supply
    PWR-C5-125WAC
    Fans
    Fixed redundant
    Software
    Network Essentials C9200L-48T-4X-E Network Processing Engine Ethernet Switch
    Chassis Dimensions
    1.73 x 17.5 x 11.3 in
    4.4 x 44.5 x 28.8 cm
    Virtual Networks
    1
    Stacking bandwidth
    80 Gbps C9200L-48T-4X-E Network Processing Engine Ethernet Switch
    Total number of MAC addresses
    16,000
    Total number of IPv4 routes (ARP plus learned routes)
    11,000 (8,000 direct routes and 3,000 indirect routes)
    IPv4 routing entries
    3,000
    IPv6 routing entries
    1,500
    Multicast routing scale
    1,000
    QoS scale entries
    1,000
    ACL scale entries
    1,500
    Packet buffer per SKU
    6 MB buffers for 24- or 48-port Gigabit Ethernet models
    Flexible NetFlow (FNF) entries
    16,000 flows on 24- and 48-port Gigabit Ethernet models
    DRAM
    2 GB C9200L-48T-4X-E Network Processing Engine Ethernet Switch
    Flash
    4 GB
    VLAN IDs
    1024
    Total Switched Virtual Interfaces (SVIs)
    512
    Jumbo frames
    9198 bytes C9200L-48T-4X-E Network Processing Engine Ethernet Switch
    Wireless bandwidth per switch
    N/A
    Switching capacity
    176 Gbps C9200L-48T-4X-E Network Processing Engine Ethernet Switch
    Forwarding rate
    261.9 Mpps
    Mean time between failures (hours)
    503,400
